Why Pico/Nano Satellties?

» Reducing the cost of entry into space

• Achieving more missions within fixed budgets

» Reducing the time to get into orbit

• More frequent mission opportunities
• Responding rapidly from initial concept to orbital operation

» Opening the New-Space opportunities

• Scientific investigations
• Commercial ventures
• Educational satellites

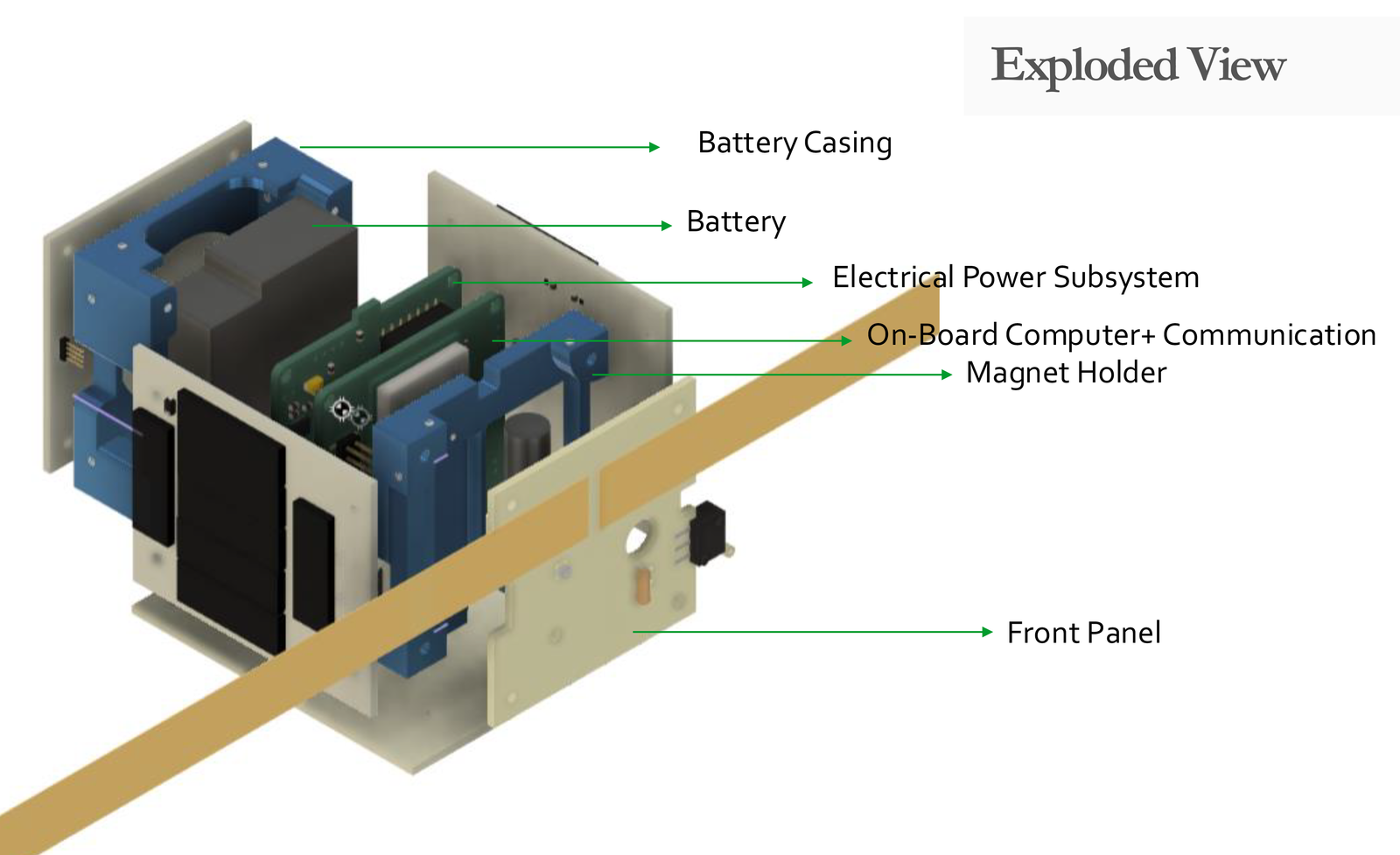

DecimalSat-1

• 1P PocketQube
• Frequency: UHF Band
• ADCS: Passive
• Primary Mission: send DNA encrypted messages to Space.
• Secondary Mission-1: To Test results of various Sun Sensors
• Secondary Mission-2: Digipeater Mission

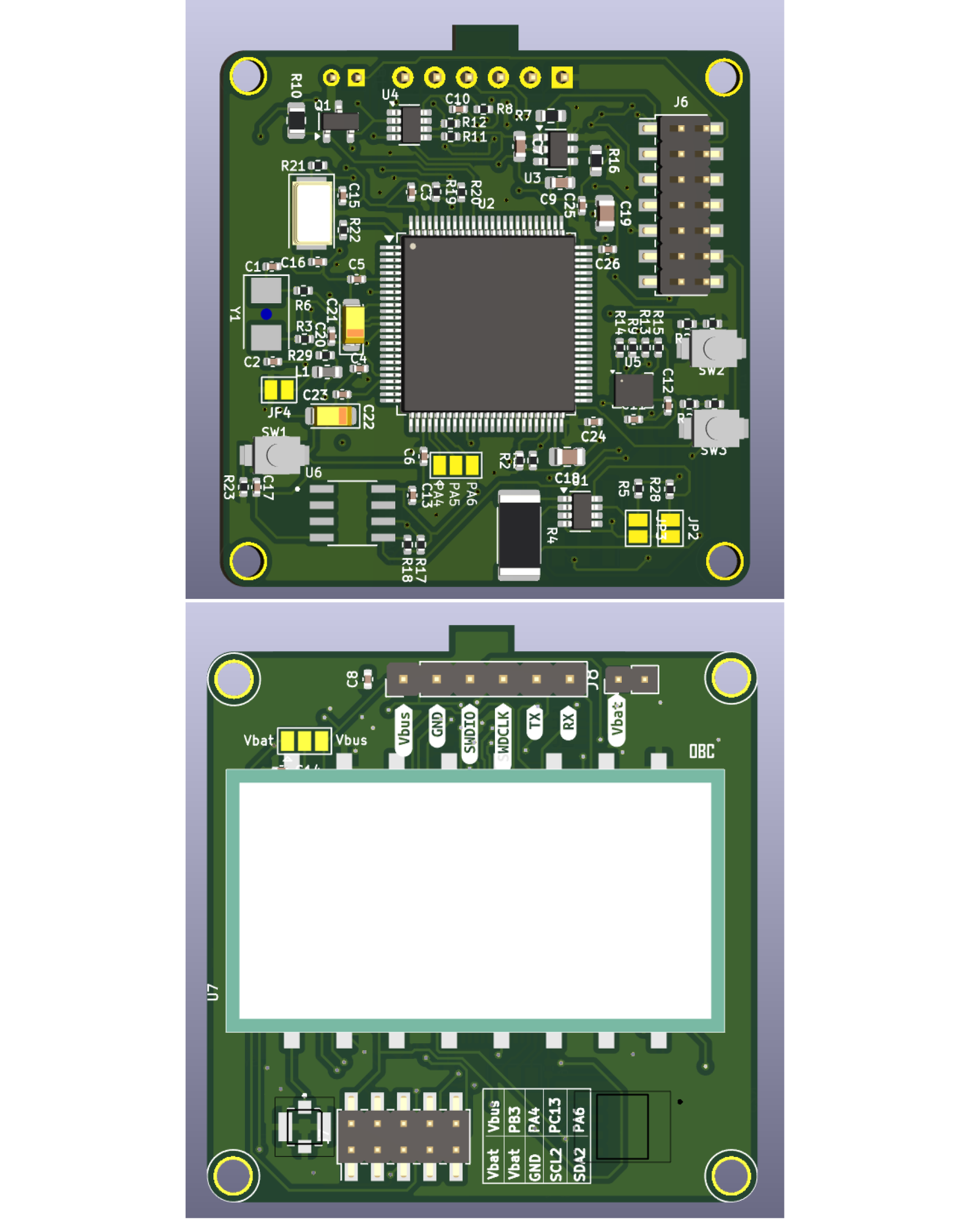

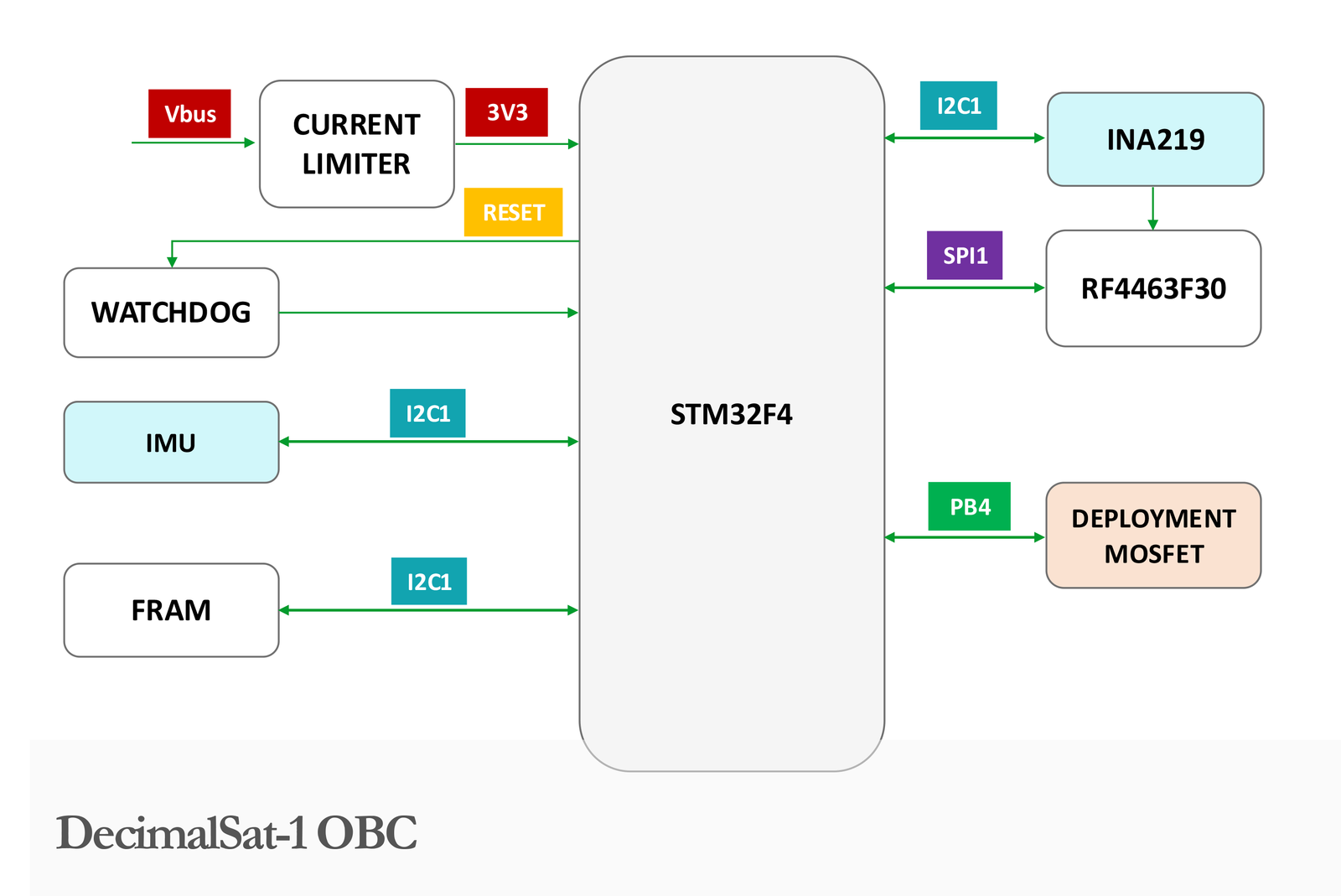

ON-BOARD COMPUTER

• STM32F4 Based Microcontroller
• Consists of IMU, Current Sensor, Communication Board and External Watchdog
• FRAM For External Memory

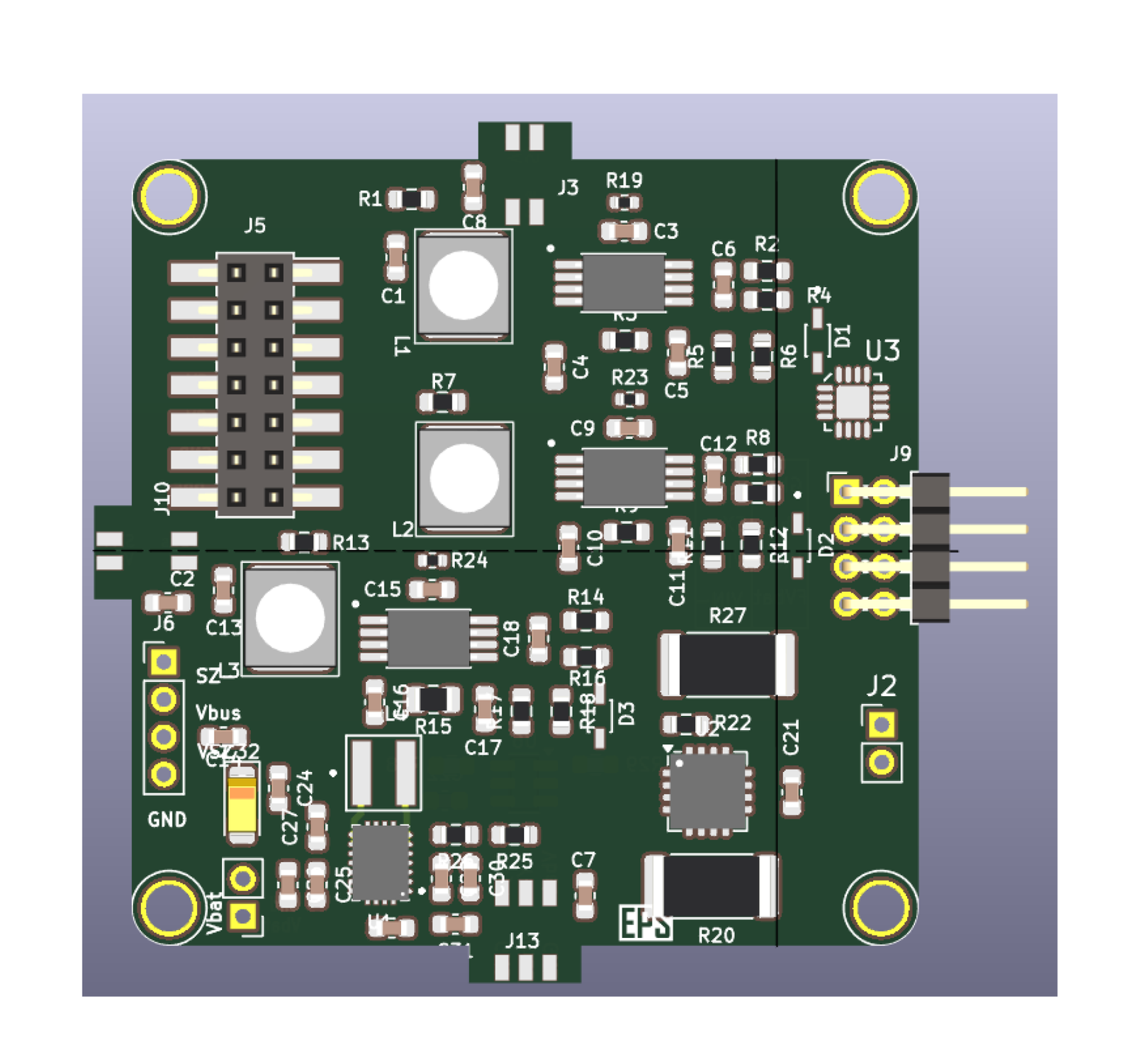

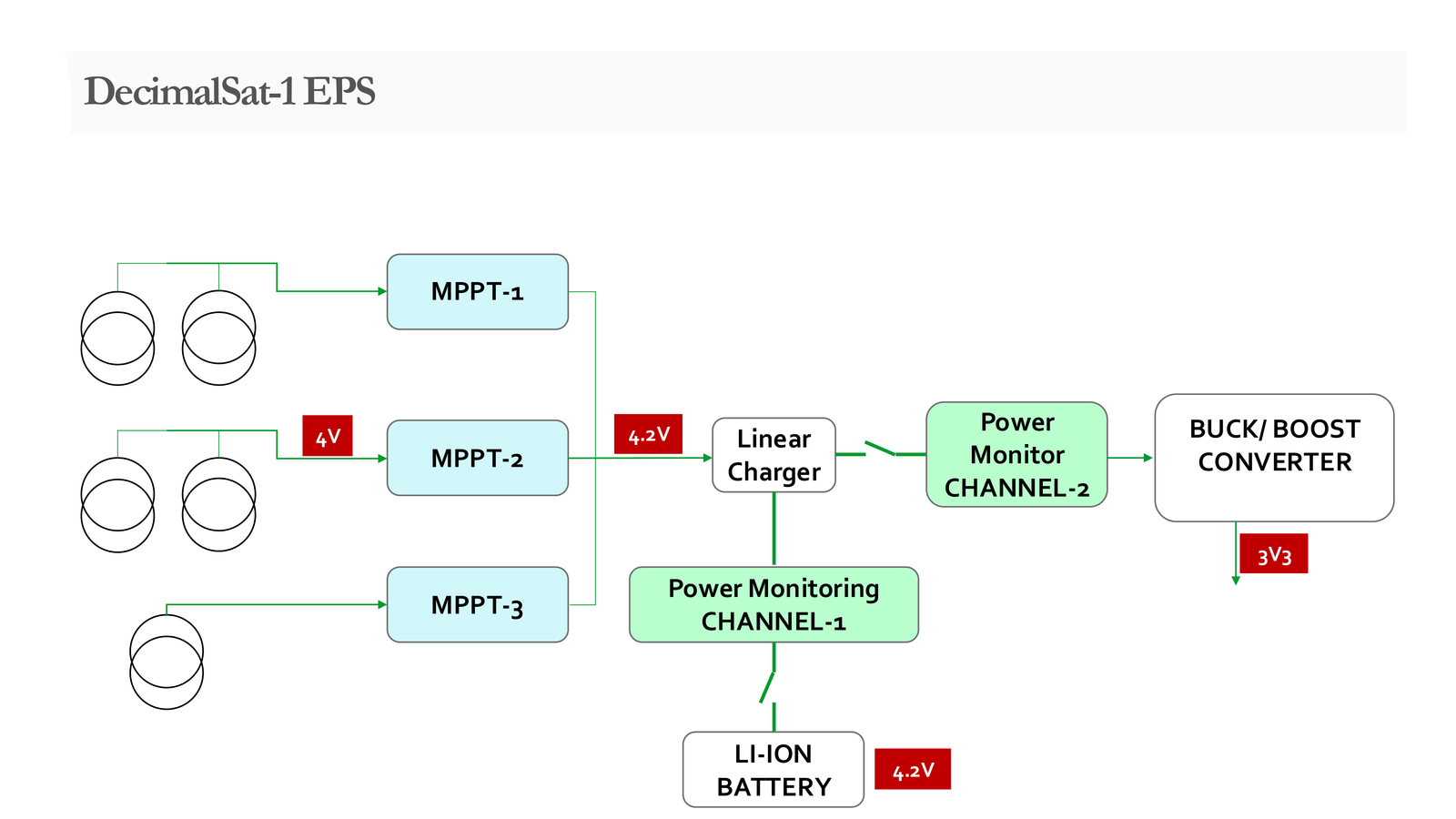

Electrical Power Subsystem

• Responsible for charging the batteries from the solar cells
• The outer part of the PQ consists of solar cells
• Uses MPPT [Maximum Power Point Tracking Algorithm] to charge the Lithium Ion Battery.
• 5 faced is covered by the PV cells
• The EPS gives a voltage of 4.2V
• Linear Charger to Charge the battery
• 2 Channel current Sensor to read the charging voltage/current and bus voltage/ current
• Buck/ Boost Converter to convert battery voltage to Bus Voltage
